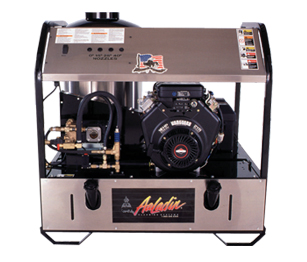

Self-Contained Pressure Washers
These Self-Contained Models are each Heavy Duty Skid Style Pressure Washers with a Vertical Heat Chamber and Belt Drive.
Standard Features Include:
- Durable Powder Coated Frame
- Electric Start
- Fuel Efficient Combustion Chamber
- Hour Meter
- Pressure Atomized Burner
- Pressure Relief Valve
- Quick Coupled Nozzles
- Removable Poly Fuel Tank
- Roll Cage Frame
- Schedule 80 Steel Pipe Coil
- Shock Absorbing Engine Base
- Stainless Steel Combustion Chamber
- Stainless Steel Nozzles
- Trigger Gun Control
- Triplex Ceramic Plunger Pump
- Variable Pressure Wand (42-430 & 42-530)
- Vertical Fired Coil
- Wire Braid Discharge Hose
- Belt Driven Pump
- Vanguard Engine (42-430, 42-440, 42-530)
- Low Oil Engine Protection
- Water Separating Fuel Filter
- High Amp Charging System
- 12V Ingnition System
- High Limit Temperature Shutoff
- Low Water Shutoff Protection
- Downstream Chemical Injection
- Automatic Electric Burner Ignition
- Extended Engine Oil Drain (Vanguard)
- Auxliiary Gasoline Tank (42-440 & 42-530)
- Plasic Battery Box
- Stainless Steel Control Panel
- Downstream Chemical Injection
- Stainless Steel Control Panel
- Shock Mount Plastic Battery Box
Dealor Installed Options:
- Four Wheel Kit
- Van Hood
- S.S. Float Tank / High Pressure Soap
Factory Installed Options:
- Honda Engine
- S.S. Float Tank / High Pressure Soap
*H=Honda, V=Vanguard, C=Clutch
| Model | 42-430H | 42-430H-C | 42-440V | 42-440H |
|---|---|---|---|---|
| Flow Output (GPM) | 4 | 4 | 4 | 4 |
| Pressure Ratings (PSI) | 3000 | 3000 | 4000 | 4000 |
| Max Output Temperature | 210° | 210° | 210° | 210° |
| Heat Rise Degrees Fahrenheit | 155 | 155 | 155 | 155 |
| Cleaning Comparison Index | 20,700 | 20,700 | 23,405 | 23,405 |
| Engine | HONDA | HONDA | VANGUARD | HONDA |
| Engine Horsepower | 13 | 13 | 16 | 20 |
| Engine Pump Drive | BELT | CLUTCH | BELT | BELT |
| Engine Fuel | Gas | Gas | Gas | Gas |
| Engine Fuel Capacity | 1.25 | 1.25 | 7.4 | 7.4 |
| Engine Start | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| Operating Fuel | OIL | OIL | OIL | OIL |
| Input BTU's | 384,000 | 384,000 | 384,000 | 384,000 |
| Fuel Consumption (GPH) | 1.6 | 1.6 | 1.6 | 1.6 |
| Burner Fuel Tank Capacity | 16.5 | 16.5 | 16.5 | 16.5 |
| Burner Voltage | 12V | 12V | 12V | 12V |
| Stack Size | 8" | 8" | 8" | 8" |
| Discharge Hose | 3/8" x 50' | 3/8" x 50' | 3/8" x 50' | 3/8" x 50' |
| Length | 43" | 43" | 43" | 43" |
| Width | 34" | 34" | 34" | 34" |
| Height | 43" | 43" | 43" | 43" |
| Approximate Weight (LBS) | 725 | 740 | 750 | 750 |
| Model | 42-530V | 42-530V-C | 42-535H | 42-530H-C |
|---|---|---|---|---|
| Flow Output (GPM) | 5 | 5 | 5 | 5 |
| Pressure Ratings (PSI) | 3000 | 3000 | 3500 | 3000 |
| Max Output Temperature | 210° | 210° | 210° | 210° |
| Heat Rise Degrees Fahrenheit | 155 | 155 | 155 | 155 |
| Cleaning Comparison Index | 25,870 | 25,870 | 25,870 | 25,870 |
| Engine | VANGUARD | VANGUARD | HONDA | HONDA |
| Engine Horsepower | 16 | 16 | 20 | 20 |
| Engine Pump Drive | BELT | CLUTCH | BELT | CLUTCH |
| Engine Fuel | Gas | Gas | Gas | Gas |
| Engine Fuel Capacity | 7.4 | 7.4 | 7.4 | 7.4 |
| Engine Start | ELECTRIC | ELECTRIC | ELECTRIC | ELECTRIC |
| Operating Fuel | OIL | OIL | OIL | OIL |
| Input BTU's | 465,000 | 465,000 | 465,000 | 465,000 |
| Fuel Consumption (GPH) | 2 | 2 | 2 | 2 |
| Burner Fuel Tank Capacity | 16.5 | 16.5 | 16.5 | 16.5 |
| Burner Voltage | 12V | 12V | 12V | 12V |
| Stack Size | 8" | 8" | 8" | 8" |
| Discharge Hose | 3/8" x 50' | 3/8" x 50' | 3/8" x 50' | 3/8" x 50' |
| Length | 43" | 43" | 43" | 43" |
| Width | 34" | 34" | 34" | 34" |
| Height | 43" | 43" | 43" | 43" |
| Approximate Weight (LBS) | 750 | 765 | 800 | 815 |
