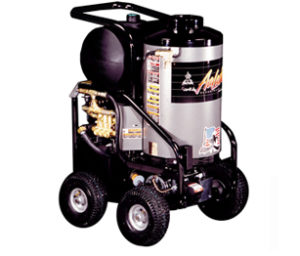

12 Series – ES Model
12 Series – ES Model
Includes All Features of the ED Model Plus:
- Belt Driven Pump
- Exclusive High Strength Plastic Manifold
- Quick Couple Manifold Plumbing Connections
- Corrosion Proof Polyethylene Float Tank with Chemical Metering
- 0° & 15° Quick Couple Nozzles
| Model | 12-216 | 12-310 | 12-325 | 12-423 | 12-430 |
|---|---|---|---|---|---|
| Flow Output (GPM) | 2 | 3 | 3 | 4 | 4 |
| Pressure Ratings (PSI) | 1600 | 1000 | 2500 | 2300 | 3000 |
| Max Output Temperature | 175° | 175° | 175° | 180° | 180° |
| Cleaning Comparison Index | 7014 | 8317 | 13151 | 17005 | 19421 |
| Motor Horsepower | 2.3 | 2.3 | 5 | 6 | 8 |
| Volt | 115 | 115 | 230 | 230 | 230 |
| Amp | 20 | 20 | 20 | 30 | 40 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Input BTU's | 179,000 | 274,000 | 274,000 | 366,000 | 366,000 |
| Fuel Consumption (GPH) | 0.77 | 1.18 | 1.18 | 1.57 | 1.57 |
| Burner Fuel Tank Capacity | 7.4 | 7.4 | 7.4 | 10.4 | 10.4 |
| Stack Size | 7" | 7" | 7" | 8" | 8" |
| Length | 31.5" | 31.5" | 31.5" | 37.5" | 37.5" |
| Width | 24.5" | 24.5" | 24.5" | 29" | 29" |
| Height | 39" | 39" | 39" | 44.5" | 44.5" |
| Approximate Weight (LBS) | 310 | 310 | 325 | 465 | 485 |
