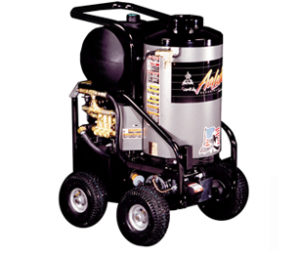

12 Series – ED Model
The 12 Series ED Model has a competitive line of features at a comfortable price point.
Features Include:
- Direct Drive Pump
- Industrial High Efficiency Electric Motor
- High Limit Temp Control
- Heavy Limit Temp contorl
- Heavy Duty Electro Plated Fittings
- Welded Heavy Duty 1 1/4″ OD Steel Tube Frame
- Built-In Hose Reel Socket
- Durable Poweder Coated Automotive Qualiy Pain Finish
- Pneumatic Tires on Dish Wheels
- Painted Steel Wrapper
- Extremely Efficient Heat Chamber Design
- Exclusive Combustion Chamber UInsulation System
- Heating Coil constructed of ASTM A53 Schedule 80 Stell Pipe
- Corrosion Proof Molded Polyethylene Fuel Tank
- Quick Coil Access
- High Efficiency Beckett Burner
- Fuel Oil solenoid
- In-line Fuel Filter
- Trigger Gun Control
- 36″ Insulated Wand
- Flood Nozzle with Fixed 15° Spray Tip (Except 12-203 ED & 12-210C ED)
- 3/8″ x 40′ High pressure Hose Guards
- Four Wheel Design
- GFCI Protection with 10′ Elecrical Cord
- Flexible Vinyl Poly Coated Tri-Lingual Decals
Models 12-203D and 12-210CD have steam capabilities.
| Model | 12-212D | 12-320D | 12-203D | 12-210CD |
|---|---|---|---|---|
| Flow Output (GPM) | 2 | 3 | 2.2 | 2.2 |
| Pressure Ratings (PSI) | 1200 | 2000 | 300 | 1000 |
| Max Output Temperature | 175° | 175° | 300° | 300° |
| Cleaning Comparison Index | 6074 | 11763 | 4263 | 6436/7783 |
| Motor Horsepower | 2 | 4 | .75 | 1.5 |
| Volt | 115 | 230 | 230 | 230 |
| Amp | 20 | 20 | 15 | 20 |
| Phase | 1 | 1 | 1 | 1 |
| Input BTU's | 179,000 | 274,000 | 383,000 | 383,000 |
| Fuel Consumption (GPH) | 0.77 | 1.18 | 1.65 | 1.65 |
| Burner Fuel Tank Capacity | 7.4 | 7.4 | 10.4 | 10.4 |
| Stack Size | 7" | 7" | 8" | 8" |
| Length | 31.5" | 31.5" | 37.5" | 37.5" |
| Width | 24.5" | 24.5" | 29" | 29" |
| Height | 39" | 39" | 44.5" | 44.5" |
| Approximate Weight (LBS) | 290 | 320 | 380 | 415 |
